Best Cordless Drill for Installing Door Hardware

Comparison Overview

Best Cordless Drill For Installing Door Hardware

Upgrading your doors with new hardware can make a big difference. It can boost security. It can also refresh your home’s look. Installing new locks, knobs, and hinges is a common DIY task. You’ll need the right tools for the job. A good cordless drill is essential. It makes drilling holes much easier. It also helps with driving screws. But with so many options, which one is best? This guide will help you choose. We’ll look at what makes a cordless drill great for door hardware installation. We’ll also review some top picks.

How We Picked

We looked for drills that are powerful enough. They need to handle drilling through wood doors. They also need to drive screws for hinges and latches. We considered ease of use. A comfortable grip is important. So is a balanced weight. We also checked for features that help with precision. This includes variable speed settings. A good clutch is also key. It prevents over-tightening screws. We also thought about battery life. You don’t want the drill to die mid-project. Finally, we looked at value. Good tools don’t have to break the bank.

Buying Guide

Choosing the right cordless drill involves a few key considerations. Let’s break them down.

Power and Torque

For installing door hardware, you’ll be drilling holes. You’ll also be driving screws. This requires a decent amount of power. Look for drills with at least 20 volts. This voltage usually means more torque. Torque is the twisting force. It helps the drill power through tough materials. It also helps when driving screws. A drill with around 250-300 inch-pounds of torque is usually sufficient. This lets you handle most door materials. It also gives you enough strength for screws.

Speed Settings

Variable speed is a must-have feature. Most drills offer at least two speed settings. A lower speed is great for driving screws. It gives you more control. It helps prevent stripping screw heads. A higher speed is better for drilling holes. It makes the process faster. Some drills have even more speed options. This offers even greater versatility.

Chuck Type and Size

The chuck is what holds the drill bit or screwdriver bit. Most modern cordless drills use a keyless chuck. This means you can tighten and loosen it by hand. This is much more convenient. Chucks come in different sizes. The most common is 3/8 inch. For door hardware, this size is perfectly adequate. Some drills have a 1/2 inch chuck. This can accept larger bits. It’s not strictly necessary for door work. But it offers more flexibility for other projects. Look for a chuck that grips bits securely.

Battery and Charger

Cordless drills run on batteries. Lithium-ion batteries are the standard today. They offer good power and longevity. Battery capacity is measured in amp-hours (Ah). A higher Ah rating means longer run time. For a single door project, a 1.5 Ah battery is often fine. If you plan on doing more extensive work, consider a larger battery. Some kits come with two batteries. This is ideal. It means you can charge one while using the other. Fast chargers are also a plus. They get you back to work quickly.

Ergonomics and Weight

You’ll be holding the drill for a while. Comfort is important. Look for a drill with an ergonomic handle. It should feel good in your hand. A rubberized grip can improve comfort. It also provides better control. The weight of the drill matters too. A lighter drill is less fatiguing. However, don’t sacrifice power for weight. Many compact drills offer a good balance.

Clutch Settings

The clutch on a drill controls the torque. It helps prevent over-driving screws. This is crucial for door hardware. You don’t want to damage the door or the hardware. A drill with multiple clutch settings gives you fine control. You can adjust it for different screw sizes and materials. This prevents stripping screws or cracking wood.

Included Accessories

Some drills come as bare tools. Others come in kits with batteries, chargers, and bits. For installing door hardware, you’ll need drill bits and screwdriver bits. Some kits include a basic set. You might want to purchase specialized bits separately. For example, you’ll need hole saws for the main lock cylinder. A door lock installation kit often includes these.

Door Lock Installation Kits

While this guide focuses on drills, it’s worth mentioning door lock installation kits. These kits are designed specifically for this task. They often include the necessary hole saws. They also come with a jig. The jig guides your drilling. This ensures accurate placement of holes. Some kits are very basic. Others are more comprehensive. They can simplify the process greatly.

Our Top Picks

Let’s look at some specific tools that can help you with your door hardware projects.

DEWALT 20V Max Cordless Drill/Driver Kit (DCD771C2)

This Dewalt drill is a solid choice for homeowners. It’s a 20-volt tool. This means it has plenty of power. The drill delivers 300 unit watts out. This is enough for most DIY tasks. It has two speed settings. These are 0-450 RPM and 0-1500 RPM. This range is good for both drilling and driving. The compact and lightweight design is a big plus. It fits into tight spaces easily. The ergonomic handle adds comfort. The 1/2-inch chuck grips bits securely. This kit comes with two batteries and a charger. This is great for uninterrupted work. It’s a reliable drill that will serve you well for many projects.

COMOWARE 20V Cordless Drill

The Comoware 20V drill is a more budget-friendly option. It’s a 20-volt drill. It offers 266 inch-pounds of torque. This is respectable for its price point. It features two variable speeds. These are 0-350 RPM and 0-1300 RPM. The drill has a 25+1 position clutch. This allows for precise control. It helps prevent over-driving screws. The 3/8-inch keyless chuck is easy to use. It accepts many common bits. This kit includes one 1500mAh battery and a charger. It also comes with a 23-piece accessory set. This includes drill bits and screwdriver bits. A compact storage case is also included. The LED work light is helpful in dim areas. This is a good starter drill for basic home repairs.

Milescraft 7301 Door Kit

This Milescraft kit is specifically for door hardware. It’s not a drill itself. It’s an accessory kit. It includes a self-clamping lock and knob jig. This jig requires no screws. It won’t damage your door surfaces. It adjusts for common backsets. These are 2-3/8 inch and 2-3/4 inch. The kit includes 2-1/8 inch and 1-inch bi-metal hole saws. These are essential for door lock installation. It also has a hinge jig. This jig helps you route hinge mortises. This is a great companion for any cordless drill. It makes door hardware installation much more precise.

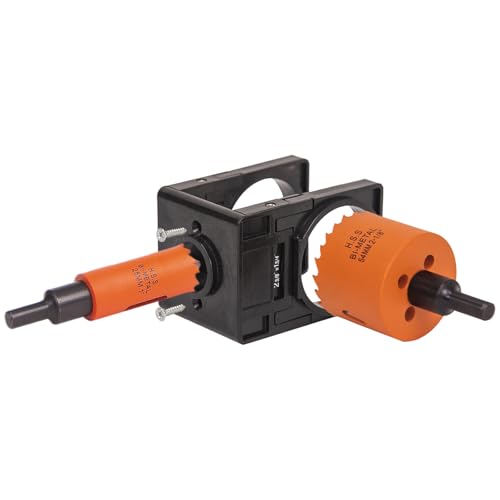

VIKITON Door Lock Installation Kit

The Vikiton Door Lock Installation Kit is another excellent accessory. It’s very affordable. This kit includes an adjustable plastic guide jig. It also comes with a 1-inch hole saw and a 2-1/8 inch hole saw. Both have depths suitable for doors. The bi-metal construction of the hole saws makes them sharp. They are also durable. The jig adjusts to fit different door lock sizes. It works with 1-3/8 inch and 1-3/4 inch thick doors. It also accommodates both 2-3/8 inch and 2-3/4 inch backsets. This kit is easy to use. It’s a great option for anyone tackling a single door project. It simplifies the process of drilling the necessary holes.

LazBlinds 100% Blackout Door Blinds

This product is not a drill or an installation kit. It’s a set of door blinds. It’s included here to highlight a common misunderstanding. Sometimes, people search for “door drill” or “door installation” and might come across unrelated items. These blinds are designed for “no drill” installation. They use foam glue or brackets. They are a good example of a product that might appear in search results but isn’t relevant to choosing a cordless drill.

How To Use A Drill For Door Hardware

Using a cordless drill for door hardware is straightforward. Here’s a general guide.

1. Gather Your Tools

You’ll need your cordless drill. You’ll also need the correct drill bits. For lock cylinders, you’ll need hole saws. A 2-1/8 inch hole saw is common for the main lock body. A 1-inch hole saw is often used for the latch bolt. You’ll also need a screwdriver bit for the screws. A measuring tape and pencil are essential. A door lock installation jig is highly recommended.

2. Mark Your Door

Use a measuring tape and pencil. Mark the exact location for your lock. Most lock kits come with templates. These templates show where to drill. Follow the instructions carefully. Accuracy here is key.

3. Drill the Main Hole

If you’re using a jig, secure it to the door. This ensures the hole is centered. Attach the 2-1/8 inch hole saw to your drill. Place the pilot bit in the marked center. Drill slowly at first. Let the hole saw do the work. Keep the drill perpendicular to the door. Drill through one side of the door. Then, drill from the other side to meet the first hole. This prevents splintering.

4. Drill the Latch Hole

Now, mark the location for the latch bolt. This is usually on the edge of the door. Use the 1-inch hole saw. Drill into the edge of the door. You’ll need to drill to the depth specified by your lock. Most lock kits include a depth stop or guide.

5. Install the Hardware

Insert the latch bolt into its hole. Use your drill with a screwdriver bit. Drive the screws to secure the latch plate. Then, insert the lock cylinder. Follow the manufacturer’s instructions for your specific lock. You might need to drive screws through the door to connect the two sides of the lock.

6. Install Hinges and Strike Plates

When installing new hinges, you’ll use your drill to drive the hinge screws. You might need pilot holes. Use a small drill bit for this. For the strike plate on the door frame, you’ll also use your drill. You may need to drill pilot holes for the screws.

Important Tips

Safety First

Pilot Holes

Don’t Force It

Check Your Work

FAQs

What size drill bit do I need for a door lock?

You typically need a 2-1/8 inch hole saw for the main lock cylinder. You’ll also need a 1-inch hole saw for the latch bolt. Always check your lock’s specifications.

Can I use any cordless drill for door hardware?

While most cordless drills can handle the task, a 20-volt drill with decent torque is recommended. This ensures efficient drilling and screw driving.

What is a door lock installation jig?

A jig is a guide that helps you drill accurate holes. It ensures the lock is centered and straight. This is very helpful for precise installation.

Do I need special drill bits for metal doors?

If you’re working with metal doors, you’ll need bits designed for metal. For standard wood doors, bi-metal hole saws work well.

How do I avoid splintering the wood when drilling?

Drilling from both sides of the door can help. This meets the drill bit in the middle. It reduces tear-out. Using a sharp hole saw is also important.

Key Takeaways

Installing door hardware is a manageable DIY project. A good cordless drill is your most important tool. Look for power, variable speed, and a comfortable design. Consider kits that include batteries and chargers. Door lock installation kits with jigs and hole saws are highly recommended. They simplify the process and ensure accuracy. With the right tools and a little care, you can easily upgrade your doors. Enjoy your refreshed and secure home!
